Minoru-3d-cam



Spec

  • VGA CMOS Sensor
  • Maximum resolution 800×600
  • Camera baseline length 6 cm
  • Maximum frame rate 30 fps
  • L/R shutters don’t synchronize(Max deviation 16.5 ms)
  • Manual focus(from 10 cm to infinity)
  • field angle 42 degrees (actual measurement)

Notes

  • Indoor use only since the aperture is always open. To use outdoors, suppress the amount of light using appropriate filters.
  • Each webcam is recognized as “Vimicro USB2.0 UVC PC Camera”. At this stage it is equivalent to having two discrete webcams.
  • With Minoru driver in the CD included, the PC recognizes the device as “Novo – Minoru”. This device outputs the anaglyph or other 3d video and can be used for applications like MSN Messenger, Skype, etc.

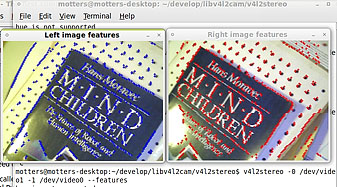

  • Calibration and rectification is required. Adjusting vertical alignment only is sufficient in most cases. Lense distortion is not affecting level´╝Ä
